Specifications:
Size: 6100x 3500 x 2950mm
Producing cycle: 15 to 20s
Pallet size: 1380x680
Total weight: 10.5T
Power: 37.5kW
The way of vibrate table and resonate
Factory area: 1000m2
Mixer needed: js750
Total weight: 10.5T
Applicable standard Q/Qly001-2007
Productivity:
Standard brick 240 x 115 x 53mm: 50 pieces/mold, 96000pieces/8 hours
Hollow block 390x 190 x 190mm: 9 pieces/mold,17280pieces/8 hours
Perforated brick 240 x 115 x 90mm:25 pieces/mold,48000 pieces/8 hours
Pavement brick 200 x 100 x 60mm: 33 pieces/mold,63360 pieces/8 hours

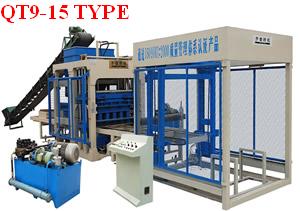

We offer first -rate products and service ,if you want to find the most suitable partner in China we are will be your best choice . The block making machine is global large productions capacity ,which can be for different design of concrete block ,paving stone and curb stone making by changing mould only .
|
