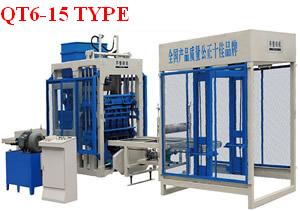

Specifications: Size: 3,000 x 1900 x 2,900mm Producing cycle: 15 to 20s Pallet size: 1000x 850x25mm Total weight: 9T Power: 30kW The way of vibrate table and resonate Vibration force: 70kN Factory area 800m2 Mixer needed: js7500 Total weight: 9T Applicable standard Q/Qly001-2007 Productivity: Standard brick 240 x 115 x 53mm: 40 pieces/mold, 76800pieces/8 hours Hollow block 390x 190 x 190mm: 6 pieces/mold, 11520 pieces/8 hours Perforated brick 240 x 115 x 90mm20 pieces/mold,38400pieces/8 hours Pavement brick 200 x 100 x 60mm: 20pieces/mold,38400 pieces/8 hours For the electro-hydraulic proportional value is vibrating system ，the material feeding with low frequency and the shape -vibrating with the high frequency have been achieved. The material distributing system mounted with multirow of stirring forscan quickly and evenly discharge the material into the mould box . Only by change it`s mould and dies ,all kinds of block can be manufactured High technology high quality and versatile ,this machine can be fit with the block stacker as the simple production line Intelligence system of the PLC is adopted to control ,with man -machine interface and diagnosis function.The block making machine is global large productions capacity ,which can be for different design of concrete block ,paving stone and curb stone making by changing mould only .
