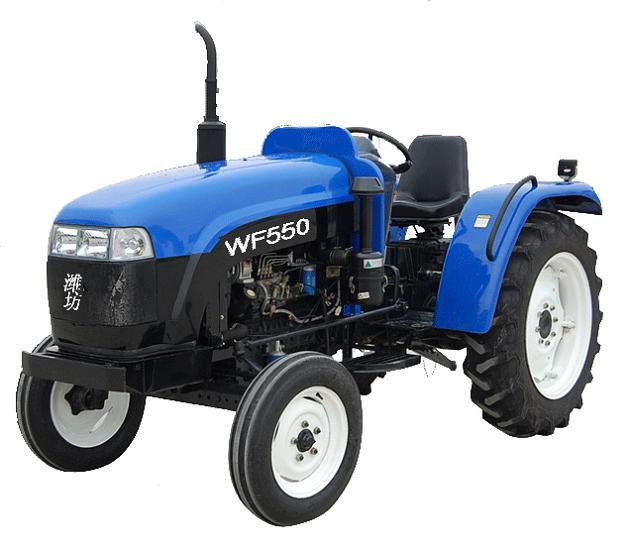

WF550 tractor:
Dimensions of tractor (mm): 3595*1590*2040
Front wheel: 1300-1500 Gear adjusted
Rear wheel: 1300-1500 Gear adjusted
Wheel Base: 2000
Min. Ground Clearance: 323mm
Structure weight (kg): 1820
Clutch: Dry-friction, one stage Constant Engagement
Steering: Cycle Ball Type
Transmission Box: (4+1)*2 8 forward speeds,2 reverse speeds

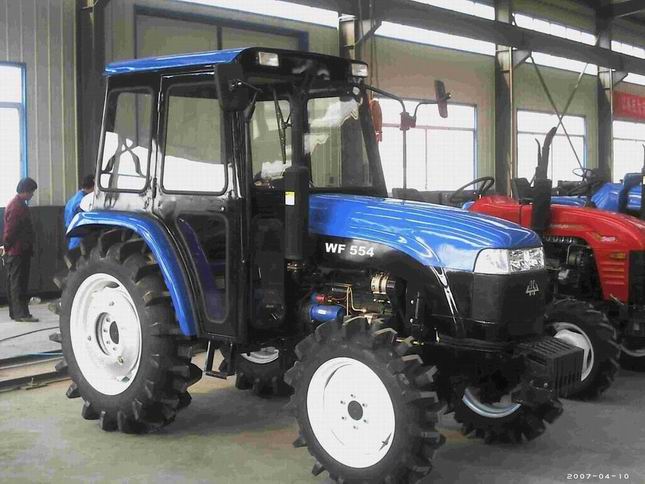

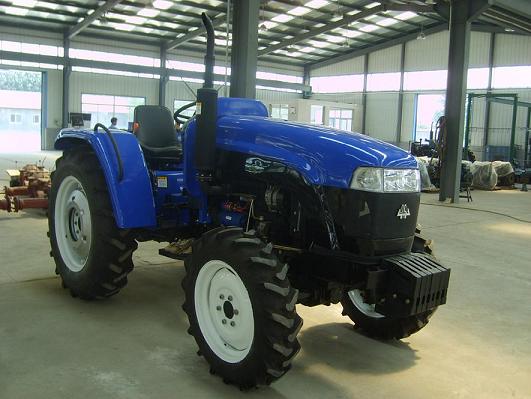

WF554 tractor:
Dimensions of tractor (mm): 3655 *1590*2040
Front wheel: 1300-1500 Gear Adjusted
Rear wheel: 1300-1500 Gear Adjusted
Wheel Base: 2000
Min. Ground Clearance: 323mm
Structure weight (kg): 1990
Clutch: Dry-friction, one stage Constant Engagement
Steering: Hydraulic Steering
Transmission Box: (4+1)*2
