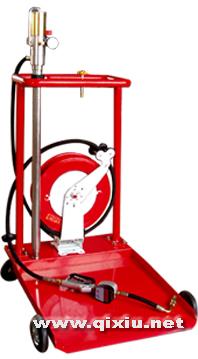

Mobile oil dispenser platform: The most practical and complete combination for dispensingoil of any density and in any workplace(workshop, farming, industry, etc. ) determined both by the easy to handle trolley and the practical hose reel with its 10 metres of hose.
The platformis equipped with: Trolley with drum quick-clamping/release device; adjustable side support for hooking gun and hose;with braked wheels;other accessories.
Heavy duty mobile oil kit suitable for drums of 180-220kg.
Complete with:
heavy duty trolley designed to accept a fixed hose reel.
hose reel with 10 meters 1/2" hose.
on request (with overprice ): hose reel weel with 15 meters 1/2" hose
double acting prmp bung adaptor
adaptor double valve oil gun with meter complete with 1/2"straignt swivel
pump-hose reel connecting hose 1/2” -2meters.
For drum 180-220 kgs
Hose reel 10 m
Length of suction tube 940 mm
Compression ratio 3:1
Noise level 81 dB
Working pressure 4-8 bar
Capacity 18L/min
Single packing carton
|
