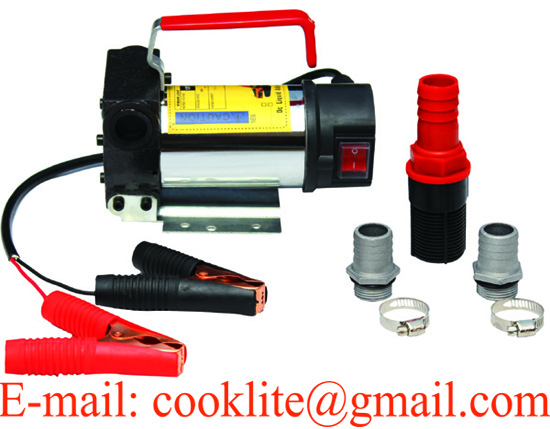

12/24V DC Electric Oil Diesel Fuel Transfer Pump / Diesel Fuel Dispenser - 175W 45L/Min
Pump Head: Cast Iron
Pump Body: Seamless Steel Tube
Rear Cover: Aluminum
Protection Cover: Plastic
Stator Material: Magnetic Steel
Coil Material: 100% Copper
Motor: Single-phase DC motor
Filter Material: Plastic ( POM )
Inlet and outlet joint Material: Aluminum
Seal Material: NBR
Battery Terminal: 2PCS( Red and Black )
Voltage: 12V and 24V ( DC )
Power: 175W
Speed: 3600 R/min
Inlet/Outlet Dia: 25mm/25mm
Output flowing: 45L/Min
Suction/Head: 5m/10m
Cable Length: 2m
Self-Priming: Yes
Packing: 6PCS/CTN
Package Size: 59 x 52 x 21cm
N.W/G.W: 24/24.5KGS |
