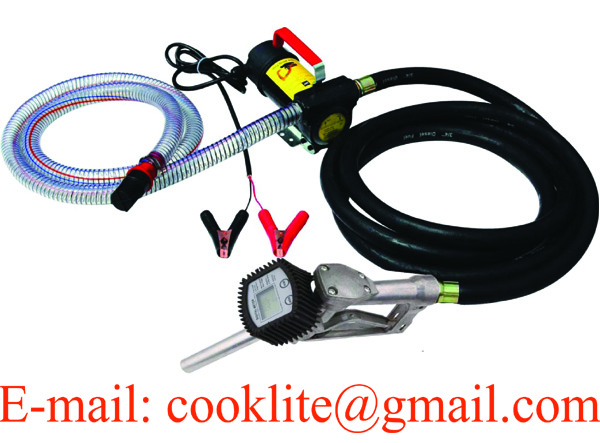

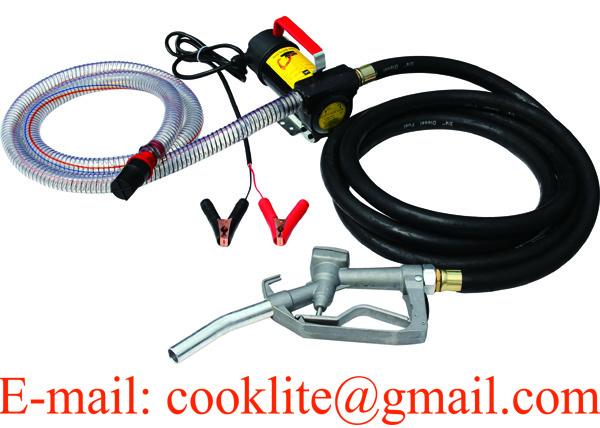

12V/24V 175W Diesel Fuel Oil Transfer Pump Kit - 45L/Min
Pump Head Material: Cast Iron
Pump Body: Seamless steel tube
Rear Cover: Aluminum
Protection Cover: Plastic
Stator Material: Magnetic Steel
Coil Material: 100% Copper
Motor :Single-phase DC motor
Filter Material: Plastic ( POM )
Inlet and outlet joint Material: Aluminum
Seal Material: NBR
Battery Terminal: 2PCS ( Red and Black,Copper Platied )
1’’ Inlet Hose: 2m ( PVC,Transparent )
3/4" Outlet Hose with 1" male thread: 4m ( Rubber, Black )
Oil Nozzel: Aluminum ( Hand )
Voltage:12V or 24V ( DC )
Power: 175W
Speed: 3600 R/Min
Inlet/Outlet Dia: 25mm/25mm
Output Flowing: 45L/Min
Suction/Head: 3m/7m
Cable Length: 2m
Deliver Hose: 4m
Inlet Hose: 2m
Oil Gun: 1PCS ( Auto or Manual )
Self-Priming: Yes
Packing: 2PCS/CTN
Package Size: 75 x 37.5 x 19.5cm
N.W/G.W: 14/15KGS
|
