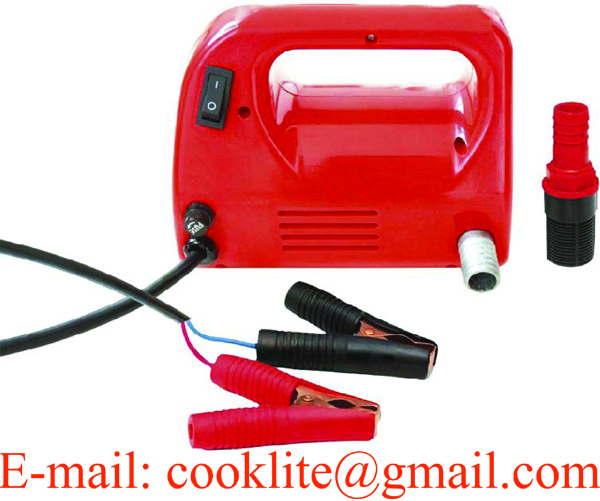

12/24V DC Electric Oil Diesel Fuel Transfer Pump / Diesel Fuel Dispenser - 175W 45L/Min
Pump Head Material: Aluminum Alloy
Pump Body Material: Seamless steel tube
Rear Cover Material: Aluminum
Protection cover Material: Plastic
Stator Material: Magnetic steel
Coil Material: 100% Copper
Motor :Single-phase DC motor
Filter Material: Plastic ( POM)
Inlet and outlet joint Material: Aluminum
Seal Material: NBR
Battery Terminal: 2 pcs( Red and Black)
Voltage: 12V and 24V
Power: 120W
Speed: 2800 R/min
Inlet diameter : 19mm
Outlet diameter : 19mm
Output flowing: 30L/min
Suction: 2m
Head: 3m
Cable Length: 2m
Self-Priming: YES
Packing: 8PCS/CTN
Package Size:65x39.5x17.5cm
Weight: NW:19kg GW:20kg |
