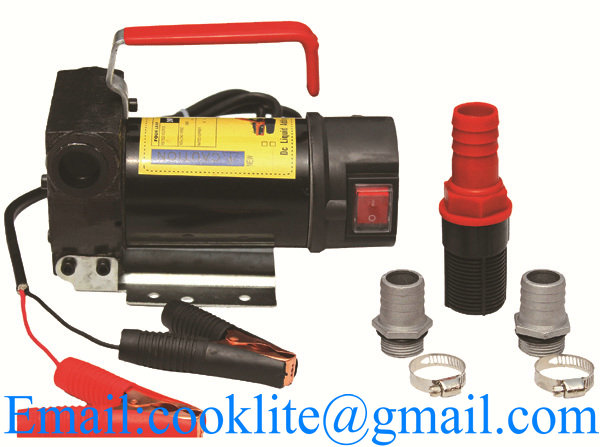

GT811-B 12V/24V DC Diesel Transfer Pump
Pump Head Material: Cast iron
Pump Body Material: Seamless steel tube
Rear Cover Material: Aluminum
Protection cover Material: Plastic
Stator Material: Magnetic steel
Coil Material: 100% Copper
Motor :Single-phase DC motor
Filter Material: Plastic ( POM)
Inlet and outlet joint Material: Aluminum
Seal Material: NBR
Battery Terminal: 2PCS ( Red and Black )
Voltage: 12V and 24V ( DC )
Power: 150W
Speed: 3600 R/Min
Inlet/Outlet Dia: 25mm/25mm
Output Flowing: 30L/Min
Suction/Head: 2m/3m
Cable Length: 2m
Self-Priming: Yes
Packing: 6PCS/CTN
Package Size: 59 x 52 x 21cm
N.W/G.W: 21/22KGS |
