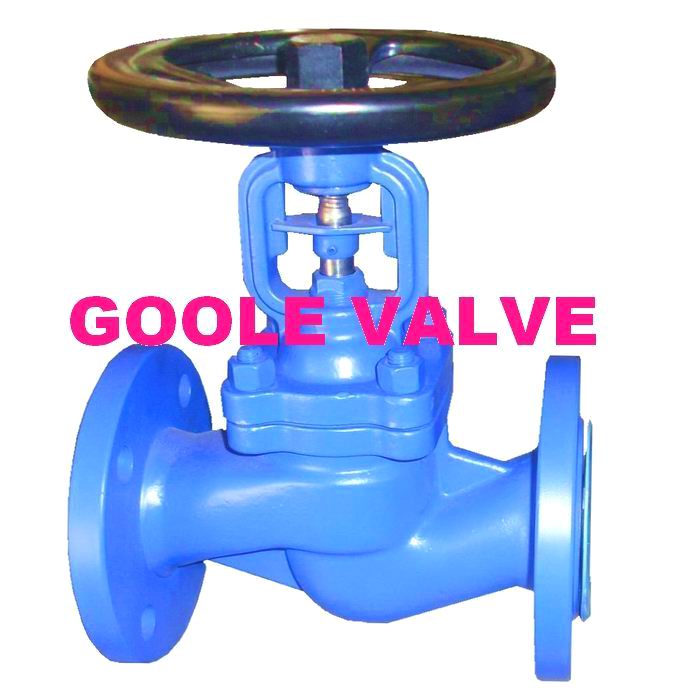

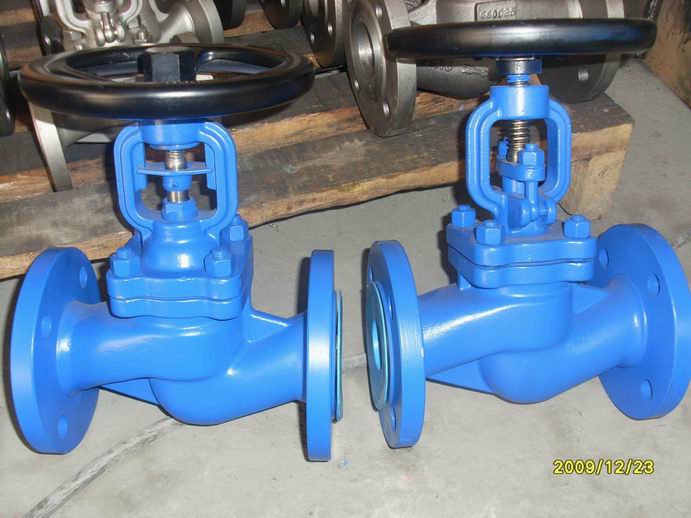

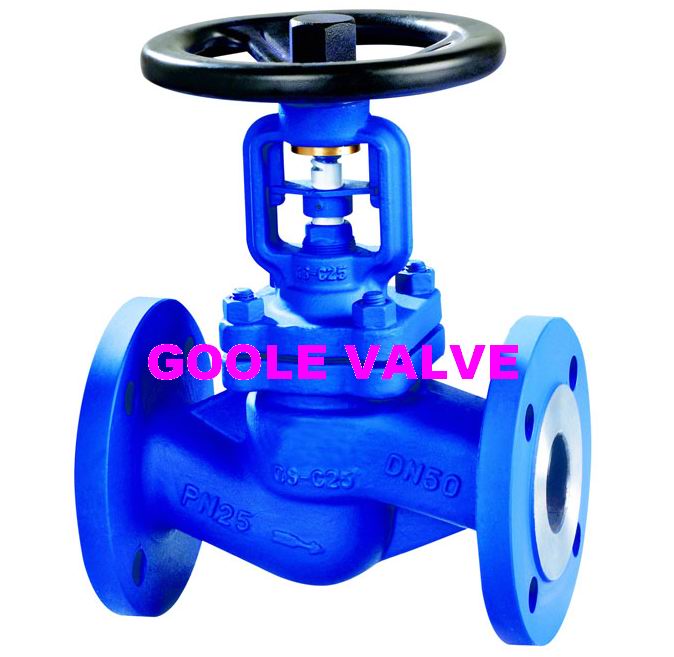

DIN Standard Bellow Sealed Globe Valve Structural Features: DIN Standard Bellow Sealed globe valve ( Os & Y Type ) is applied to various kinds of working conditions of pipelines such as petroleum, chemical industry, pharmacy, fertilizer, and power industry, etc, under nominal pressure in the PN1.6-40 MPa and operating temperature at -20 – 350℃, that is used to cut off or connected to the pipeline medium. DIN Sandard Bellow Sealed Globe Valve Main Structural Features: This bellow sealed globe valve has logical structure, reliable seal, excellent performance and nice design. Sealing face of the lobe valve is overlayed by STL, which is friction-resistant, corrosion-resistant to ensure a long time use life. Stem Heat-Treatment and surface nitriding-treatment to sure function of corrosion-resistance and friction-resistance. The globe valve has double seal, thus the capability is more reliable. The stem of the globe valve may show the position of lift, thus it is more clearer. The parts material, flange and butt welding dimension may selected according to current operating condition or users’s requirement to meeting the requirements of various engineering. DIN Standard Bellow Sealed Globe Valve Technical Specification: 1. Construction: BB-BG-OS&Y 2. Operation: Manual, Pneumatic 3. Design Standard: DIN3356 4. Face to Face Dimension: DIN3202 5. Flange Ends: DIN2543-2545 6. Test & Inspection: DIN3230 DIN Bellows Sealed Globe Valve Specifications: 1. Pressure Rating: 1.0-4.0Mpa 2. Specification: DN15-DN500 3. Material: GS-C25,CF8,CF3 4. Standard flanges: DIN --------------------- Other Information: Tel: + 86-577-57781015--------- Fax: +86-0577-67985602 ----------Email: 1. goole4@goolevalve.com ---2. fjxcathy1985@yeah.net -------3. fjxcathy@hotmail.com... ---------Website: http://www.chinavalve1.com/
