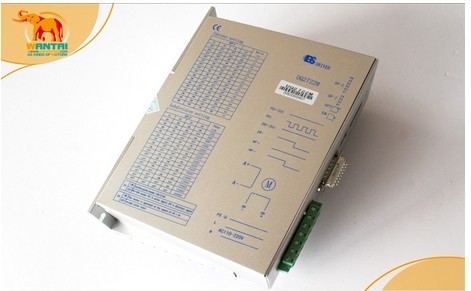

The DQ2722M is full digital 2 phase stepper driver based on DSP control. The drive voltage of which is from 110V to 220VAC. It is designed for use with the 2 phase hybrid stepper motor of all kinds with 86mm to 130mm outside diameter, regulated phase current 1.2A to 7.0A. The circuit that it adopts is similar to the circuit of servo control which enables the motor run smoothly without noise and vibration. The highest micro step is 60000ppr. It is widely used in middle and big size numerical control devices such as curving machine, CNC machine, computer embroider machine, packing machine and etc.
